Specifications of P15.625mm LED Curtain Display |
|||||||
|
No. |
DIP 346, EPISTAR |
Brightness |
View angle H*V |
Wave length |
Condition |
||
|
1 |
Red LED |
1800~2500mcd |
100º±10º;60º±10º |
620-625nm |
25℃,20mA |
||
|
2 |
Green LED |
3000~4500 mcd |
100º±10º;60º±10º |
520-525nm |
25℃,10mA |
||
|
3 |
Blue LED |
800~1800 mcd |
100º±10º;60º±10º |
465-470nm |
25℃,10mA |
||
|
1 |

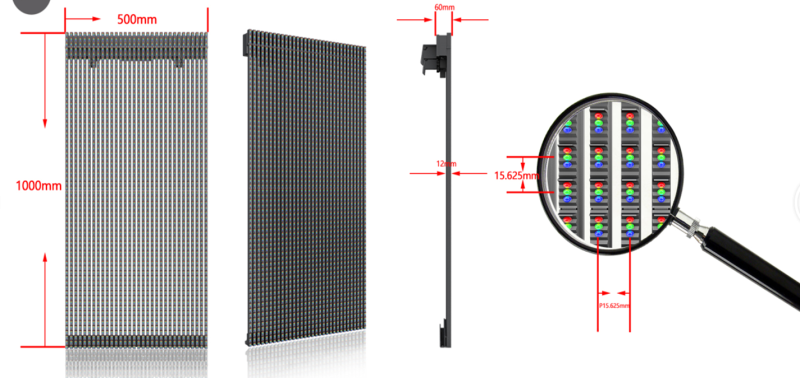

Pixel pitch |
15.625mm | |||||
|
2 |
Driving mode |
Static |
|||||
|
3 |
Pixel density |
4,096 dots |
|||||
|
4 |
Panel size |
1000mm*500mm |
|||||
|
5 |
Panel resolution |
64*32dots |
|||||
|
6 |
Material |
steel profiles |
|||||
|
7 |
Weight |
15KG/M2 |
|||||
|
8 |
Brightness |
Over 10000cd/㎡ |
|||||
|
9 |
View angle |
H110°,V60° |
|||||
|
10 |
Smallest view distance |
≥15m |
|||||
|
11 |
Grey scale |
16bit |
|||||
|
12 |
Color |
281 Trillion |
|||||
|
13 |
Refresh rate |
>3840HZ |
|||||
|
14 |
Frame rate |
60fps |
|||||
|
15 |
Input voltage |
AC 86-264V/60Hz |
|||||
|
16 |
Power(Max/ave.) |
500/250 W/㎡ |
|||||
|
17 |
MTBF |
>10,000 H |
|||||
|
18 |
Life time |
≥100,000 H |
|||||
|
19 |

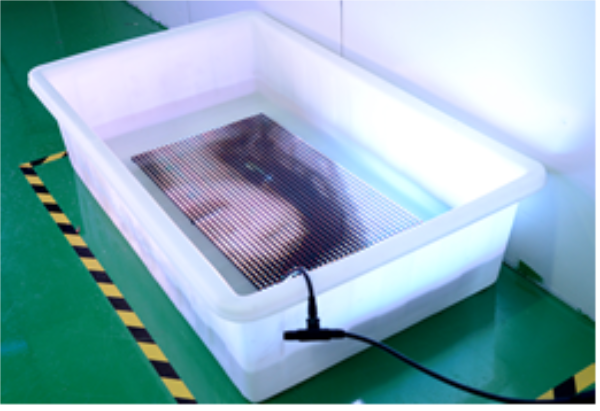

IP |
IP66 |
|||||
|
20 |
Working Tem. |
-40 ~ + 80°C |
|||||
|
20 |
Humidity |
10%-90%RH |
|||||
|
22 |

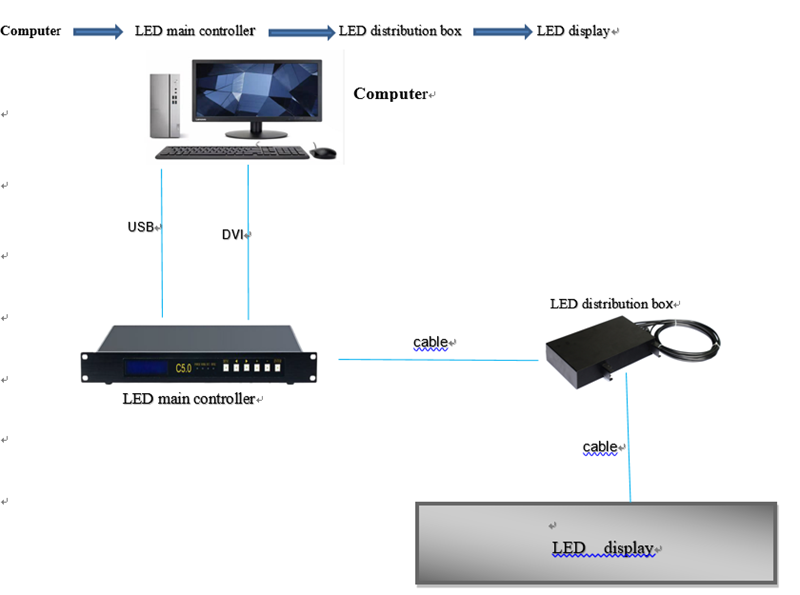

System |
A/Synchronous |
|||||
|
23 |
Video processor |
AV,DVI,HDMI,SDI,S-Video,YPb |
|||||
