Pillar LED Screen Customized Cylinder LED Display 3M Diameter

Short Description:

Soft and curved LED modules  are normally assemblied for cylinder shape LED display. Pillar LED Screen Customized Cylinder LED Display with 3M Diameter is widely installed in the hotel, big restaurant, museum, exhibition hall etc. Many overseas clients bought our pillar LED screen and make them work perfectly. Shznhen Dosatronics Co. Ltd buys extremely great brands of LED chips, LED encapsulation, IC, PCB, cables, powers, and cabinets for the production of LED screens. All the LED screes are widely installed in lots of palces, especially in city landmark, Huge Buildings, Plaza, airport, seaport, train station, bus station, scenic area and resort, Event and stage, banquet, concert, product launch, press conference, sports and stadium etc. Some special shape LED display, LED panel, LED board, LED screen are very popular in the world. Not only pillar shape LED dislay, any curve shape requirement can be satisfied. You can send us drawing or any pictures to show the curve demand, we could design and make the solution for you.

Product Detail

Product Tags

Dosatronics designs and produces high tech  and advanced LED displays. Especially outdoor LED display for advertising has high brightness, high contrast, high refresh rate…In the this display and media industry in the world, Dosatronics LED screen, LED signs, LED wall, LED panel products are highly praised by our clients. Through strict Quality management System, Dosatroncis LED displays keep strong stability. Most of the LED screen producs has over 2 years quality warranty since all components are chosen by strict IQC. They can bring you large fortune in a very short time.

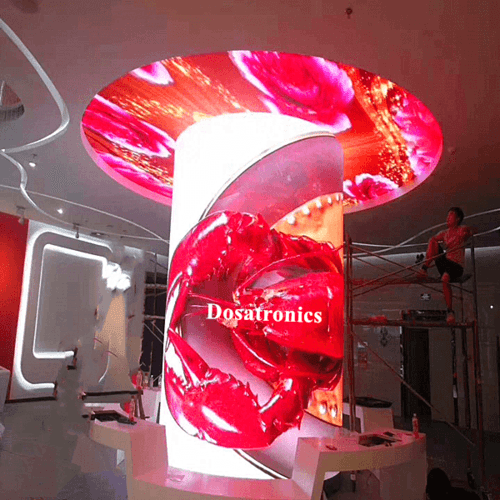

Pillar LED Screen Customized Cylinder LED Display 3M Diameter (1)

Product Details

Product Details
Brand Dosatronics
Serial Number DS-SOF-P2.5
Country of Origin Guangdong China
Certificate CE, EMC, ROHS
Payment & Shipping Terms
Price Quote Negotiable
Minimum Order 1 PCS
Average Delivery Time 15-30 days
Payment Method T/T
Package Details Customized
Ability to Supply 20000 PCS / Month
Pillar LED Screen Customized Cylinder LED Display 3M Diameter

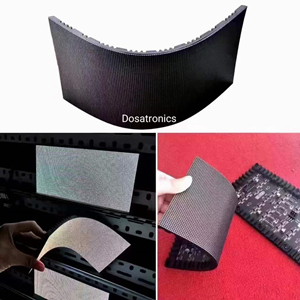

aoft, flexible LED module

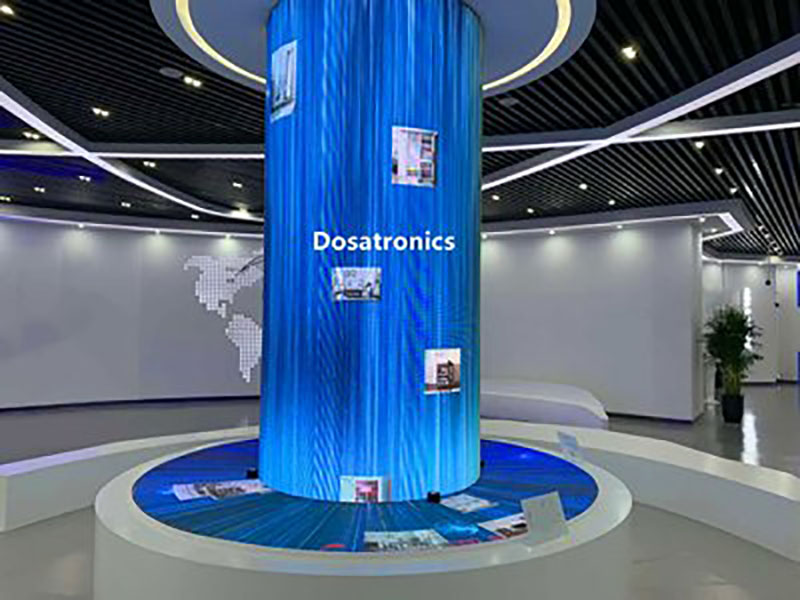

Pillar LED Screen Customized Cylinder LED Display 3M Diameter (4)
Specification & Parameter
Pixel Pitch 2.5mm Pixel Density 160000 dots/㎡
Pixel Configuration SMD 3 in 1 Module resolution/size customized
Viewing Angle 120° , 120° Cabinet resolution/size customized
Brightness ≧1000Nits Weight 40kg/㎡, Steel cabinet
Refresh rate ≧1920HZ Voltage AC 88~132V or 176~264V
Frame rate ≧60HZ Power Consumption Avg.200W/㎡,Max. ≦400W/㎡
Working temperature range  -20℃ ~ +50℃   Waterproof level  IP30

Factory Equipment

SMD Machines, Wave Soldering Conveyor, PC Console, Wave Soldering Machine,

Automatic Glue- pouring Machine, Solder Paste Printing Machine,

Reflow Soldering Machine, Automatic Solder Paste Printing Machine,

Withstand Voltage Tester, Ground Resistance Tester,

Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,

Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

Control System Connection

 NOVASTAR, LINSN, Mooncell, COLOR LIGHT, HD, KYSTAR, Dosatronics Control system


All the packs can also be customized. Dosatronics LED displays, LED screens, LED signs, LED walls, LED billboard, LED board products, surely the special shape LED display, are packed with Wooden box, Carton, flight case to ensure the safety in the shipment and transportation.

Warranty and Service

Normally speaking, all LED screen, LED display, LED signs, LED panels, LED billboards made by Dosatronics are equiped with good quality, outstanding performance. Generally, one year to three years quality warranty are widely used. For some special project of LED display in bidding, the givernment requires over three years to five years quality warranty. There is no problem. Dosatronics will choose the best raw material including the brand of LED chip, LED encapsulation, IC, PCB, powers and all other factors. Dosatronics has a very strong team of experienced engineers to instruct, install, debug the LED screens and train clients 24 hours on line. They can also fly all over the world to the clients to teach them hand by hand. Special shape LED display. Pillar LED Screen Customized Cylinder LED Display three meters Diameter. Hope all clients choose the top grade LED screens to get long time warranty and high quality service.
